WiFi Module-MSW269
Msw269 is an embedded WiFi module with onboard antenna. The module adopts sv32wb01-l chip, internally integrated MCU, with a maximum main frequency of 320mhz, built-in 384Kb SRAM and 2MB SPI flash. The whole module is powered by 3.3V single power supply, and the stamp hole SMT installation mode is provided. In addition to providing serial port transparent transmission mode, the module can also support secondary development.
Details
WiFi Module-MSW260
MSW260 is an embedded WiFi module with external antenna, which has the characteristics of small size. The module adopts sv32wb01-l chip, internally integrated MCU, with a maximum main frequency of 320mhz, built-in 384Kb SRAM and 2MB SPI flash. The whole module is powered by 3.3V single power supply, and the stamp hole SMT installation mode is provided. In addition to providing serial port transparent transmission mode, the module can also support secondary development.
Details
QR code intelligent access control terminal
With the routine of community and office management, intelligent access control system has become more and more popular. QR code intelligent access control terminal is an access control system with QR code as the identification carrier. It encodes the traditional card information into a QR code graphic, and reads and verifies the QR code picture through an authenticated mobile phone. All door opening actions, door opening methods, greeting switching, graphic display, etc. are controlled by the cloud. After scanning the QR code, the mobile phone wechat will send it to the cloud. After the cloud processing is completed, it will be sent to the terminal for completion. The mobile terminal does not save the user's private information, but uploads the authentication information left to the cloud app + applet during cloud registration. All authentication and pairing information is saved in the cloud, and the terminal is not easy to crack
Details

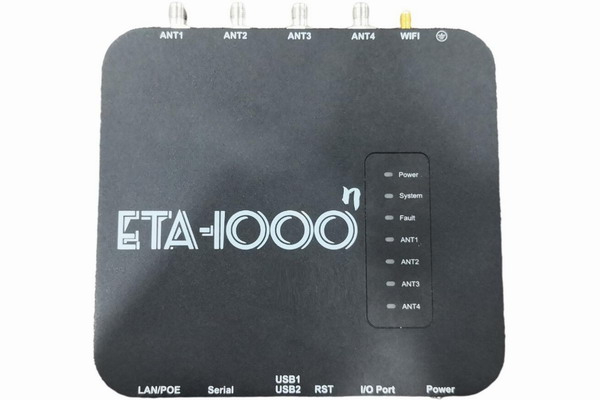

UHF RFID card reader
RFID card reader is a self-developed RFID tag card reader application scheme. Ultra high frequency (UHF) RFID technology is the most advanced fourth generation automatic identification technology in the world. It is widely used in retail, warehouse management, personnel identification and other occasions. Compared with low frequency (125k ~ 134.2k), high frequency (13.56MHz), UHF RFID reader has longer reading and writing distance, strong confidentiality, faster card reading speed and better directionality. However, although the existing card readers in the market realize a single card reading and writing function, they are facing a wide range of commercial and industrial applications, and have not been able to provide integrated products, such as power supply, communication networking, protection, compatible design, etc。
Details

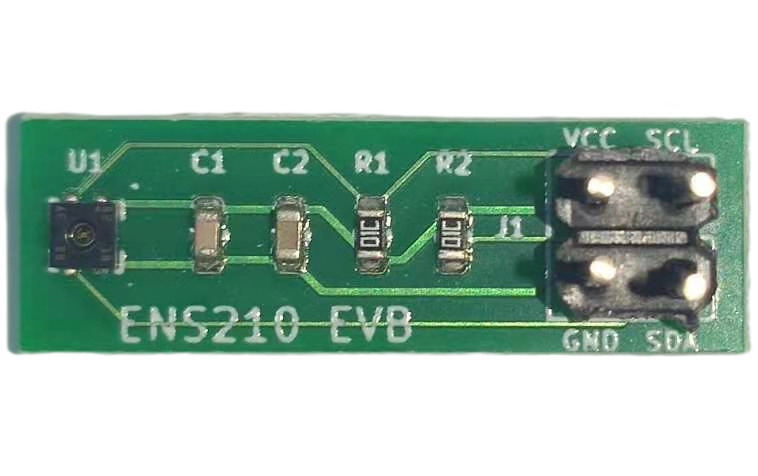

EvaluationKit ENS210
ENS210_EV is a temperature and humidity sensor module independently designed and developed. It adopts ens210 chip. The operating temperature range of ens210 is - 40 ° C to 100 ° C and the operating relative humidity range is 0% to 100%. The accuracy of the temperature sensor is ± 0.15 ° C and the accuracy of the humidity sensor is ± 2.0% RH. The module is mainly used to collect temperature and humidity data and transmit it to the host. It can be widely used in mobile phones, tablet computers and wearable devices, home and building air conditioning systems, wireless sensor nodes, laser printers, home appliances, etc
Details
BLE module-MSB280
MSB280 is a ble 5.1 Bluetooth module independently designed and developed. The module supports master-slave mode, even master-slave mode. In addition to supporting ble 5.1 protocol, msb280 module can also be downward compatible with ble historical version. The module is mainly used for wireless short-range data transmission function, and can be widely used in health and medical equipment, smart home, Bluetooth keyboard, mouse, remote control, motion measurement, remote control toys, industrial control, instruments, automobile detection equipment and P0S system. Users can remotely and automatically control the equipment containing the company's Bluetooth module through mobile phone and Bluetooth gateway.
Details

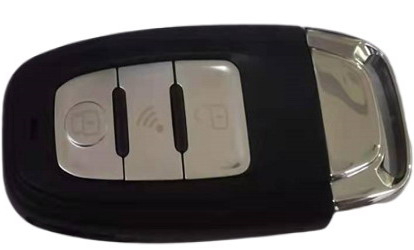

PKE System
PKE (passive keyless enter), which adopts the world's most advanced RFID radio frequency technology and the most advanced vehicle identification system, takes the lead in applying the development scheme of miniaturized and low-power RF antenna, successfully integrates the remote control system and keyless system, follows the traditional vehicle circuit protection, and truly realizes dual RF system and dual anti-theft protection, Provide maximum convenience and safety for car owners
Details
Ultrasonic meter solution
With the continuous improvement of market requirements for gas meter technology and accuracy, ultrasonic measurement technology has been widely used, and the development of ultrasonic gas meter has gradually expanded from industry to civil field. Because the composition of domestic gas source is relatively complex and the installation environment is relatively bad, it affects the accuracy and stability of ultrasonic measurement and restricts the rapid development of ultrasonic technology. The as6040 ultrasonic metering chip of Ruigan and the external expansion amplification circuit are adopted to successfully solve the problem of serious ultrasonic attenuation and insufficient signal input in harsh environment, help customers quickly realize gas design and accelerate the mass production and listing of gas meters.
Details
