category | parameter |
Wireless standard | IEEE 802.11 b/g/n H20/H40 |
A-MPDU Tx & Rx for high MAC throughput | |
WiFi mode | Support sta or AP working mode |
Security | WEP/WPA/WPA2/WPA3 |
Hardware parameters | Andes D10 32-bit RISC core,Highest dominant frequency 320MHz; ROM: 128KB , SRAM: 384KB |
working voltage DC 3.3V | |
integrate 16Mbit SPI flash In addition to storing code, you can also store data | |
SDIO,UART,SPI,I2C,PDM,PWM,ADC,GPIO The IO port adopts multiplexing mode | |
software function | Support local serial port upgrade |
Support wireless OTA upgrade | |
Define server with client Provide the SDK required for this development | |
Network protocol IPv4,TCP/UDP/HTTP/FTP | |
working temperature | -40℃ ~ +85℃ |
Storage temperature | -40℃ ~ +125℃ |

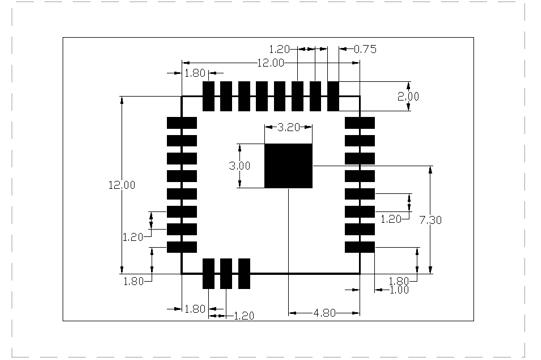

Module size | 12mmX12mmX2.1mmH |
