WiFi Module-MSW269

Model：MSW269-L
Brand：EAST SENYA

Msw269 is an embedded WiFi module with onboard antenna. The module adopts sv32wb01-l chip, internally integrated MCU, with a maximum main frequency of 320mhz, built-in 384Kb SRAM and 2MB SPI flash. The whole module is powered by 3.3V single power supply, and the stamp hole SMT installation mode is provided. In addition to providing serial port transparent transmission mode, the module can also support secondary development.

Functional & Features

category

parameter

Wireless standard

IEEE 802.11 b/g/n H20/H40

A-MPDU Tx & Rx for high MAC throughput

WiFi mode

Support sta or AP working mode

Security

WEP/WPA/WPA2/WPA3

Hardware parameters

Andes D10 32-bit RISC core，Highest dominant frequency : 320MHz；

ROM: 128KB , SRAM: 384KB

working voltage : DC 3.3V

integrate 16Mbit SPI flash

In addition to storing code, you can also store data。

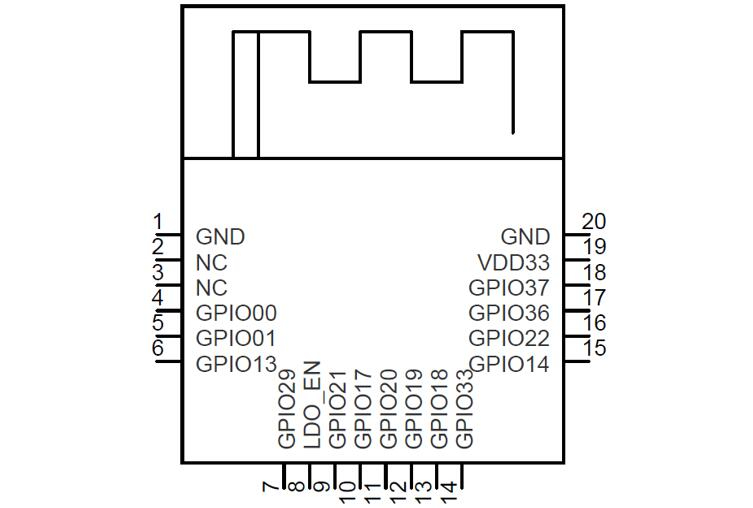

SDIO,UART,SPI,I2C,PDM,PWM,ADC,GPIO

The IO port adopts multiplexing mode

software function

Support local serial port upgrade

Support wireless OTA upgrade

Define server with client

Provide the SDK required for this development

Network protocol IPv4，TCP/UDP/HTTP/FTP

working temperature

-40℃ ～ +85℃

Storage temperature

-40℃ ～ +125℃

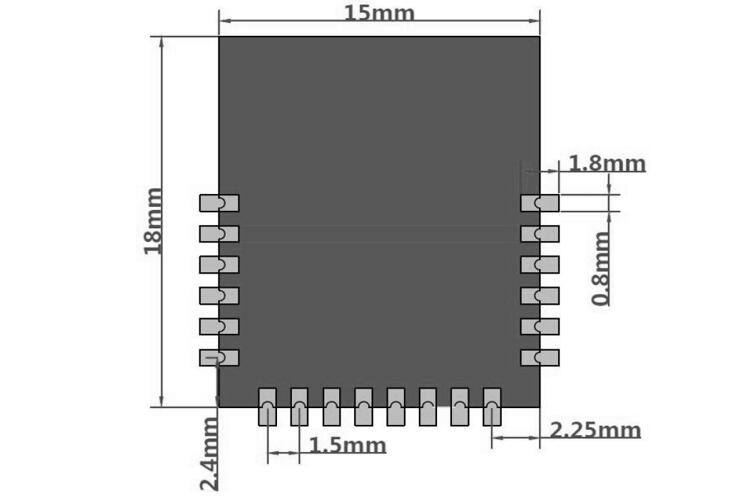

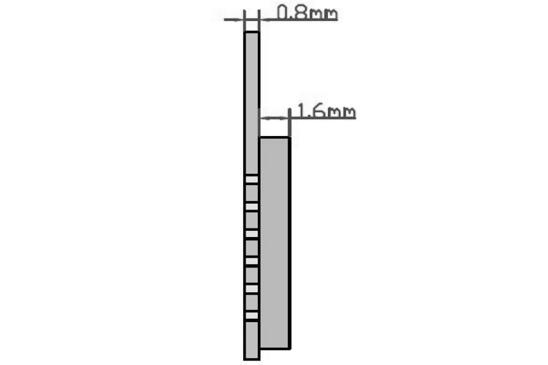

Module size

15mmX18mmX2.4mmH

category	parameter
Wireless standard	IEEE 802.11 b/g/n H20/H40
Wireless standard	A-MPDU Tx & Rx for high MAC throughput
WiFi mode	Support sta or AP working mode
Security	WEP/WPA/WPA2/WPA3
Hardware parameters	Andes D10 32-bit RISC core，Highest dominant frequency : 320MHz； ROM: 128KB , SRAM: 384KB
	working voltage : DC 3.3V
	integrate 16Mbit SPI flash In addition to storing code, you can also store data。
	SDIO,UART,SPI,I2C,PDM,PWM,ADC,GPIO The IO port adopts multiplexing mode
software function	Support local serial port upgrade
	Support wireless OTA upgrade
	Define server with client Provide the SDK required for this development
	Network protocol IPv4，TCP/UDP/HTTP/FTP
working temperature	-40℃ ～ +85℃
Storage temperature	-40℃ ～ +125℃
Module size	15mmX18mmX2.4mmH
